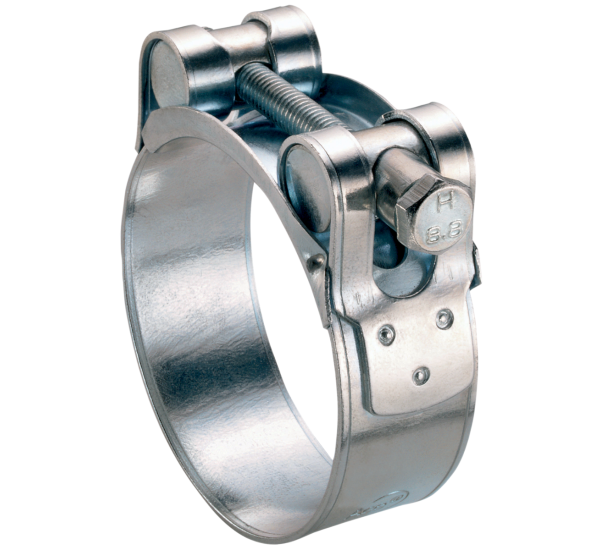

ACE T-BOLTS W1

DESCRIPTION:
- Band, plate with raised edges.
- Band, screw, bridge, plate: White zinc-plated mild steel.
- Solid trunnions.
- Hex head screw.
- 48 hours in salt spray.
USES:

Irrigation, agricultural machinery, pumping, concrete pipes, trucks, hydraulics, public works. All powerful tightenings.

RECOMMENDATIONS:

Tighten firmly. If necessary, place two collars side by side, heads reversed, at each end.

As low as £5.70 £5.70

Part no	Width	Range	Bolt Size	Pack Qty
ACE1020	18 mm	17-19 mm	5 mm	10
ACE1021	18 mm	20-22 mm	5 mm	10
ACE1171	18 mm	23-25 mm	5 mm	10
ACE1172	18 mm	26-28 mm	5 mm	10
ACE1173	20 mm	29-31 mm	6 mm	10
ACE1174	20 mm	32-35 mm	6 mm	10
ACE1175	20 mm	36-39 mm	6 mm	10
ACE1176	20 mm	40-43 mm	6 mm	10
ACE1177	22 mm	44-47 mm	6 mm	10
ACE1178	22 mm	48-51 mm	6 mm	10
ACE1179	22 mm	52-55 mm	6 mm	10
ACE1180	22 mm	56-59 mm	6 mm	10
ACE1181	22 mm	60-63 mm	6 mm	10
ACE1182	22 mm	64-67 mm	8 mm	10
ACE1183	24 mm	68-73 mm	8 mm	10
ACE1184	24 mm	74-79 mm	8 mm	10
ACE1185	24 mm	80-85 mm	8 mm	10
ACE1186	24 mm	86-91 mm	8 mm	10
ACE1187	24 mm	92-97 mm	8 mm	10
ACE1189	24 mm	104-112 mm	8 mm	10
ACE1190	24 mm	113-121 mm	8 mm	10
